Guided Task: Run the Debugger

You have two failing test cases! Yay! This means that we have a concrete example of where our code doesn’t work. And we can use the failing test case to debug our code, find the fault, and then fix it!

We’ll start with the failure in testSetMeetingDaysAndTimesInvalid(). The requirements [UC6] tell us that the student would enter the days of the week (Sunday through Saturday). That means the meetingDays value of “A” is not valid for Event. The test is failing because you CAN set the meetingDays to “A”. It’s time to use the debugger to find where you need to fix your code.

The debugger is a tool that steps through your program a statement at a time. You can follow the flow of control into a called method. Additionally, the debugger provides a view into the values of variables as the code is executing. It’s a very helpful tool for finding and fixing faults in your code.

Learning Outcomes

• Use the debugger to fix a failing test.

Set a Breakpoint

When you debug code, you need to stop the execution so you can then step through the program. A breakpoint pauses the execution of the program. Then you can view information about the program’s state.

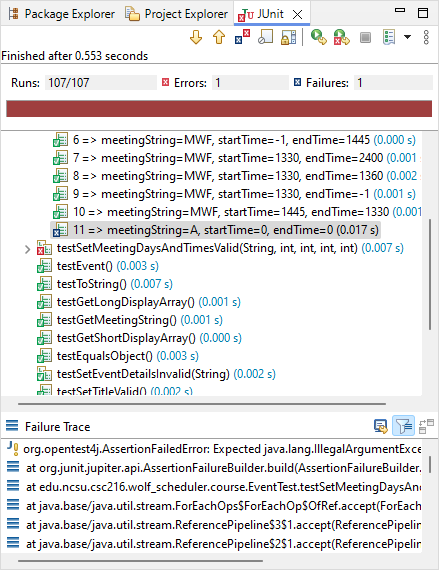

When a test fails, you should put a breakpoint at the line of the code under test that you think is causing the failure. You can determine this by selecting the failing test and investigating the failure trace as shown for the testSetMeetingDaysAndTimesInvalid() test failure below. From this failure, we can see that for the input of “A” we expected an IllegalArgumentException, but the exception was not thrown. By clicking the first line labeled “at”, we can go the specific line of code that caused the test failure.

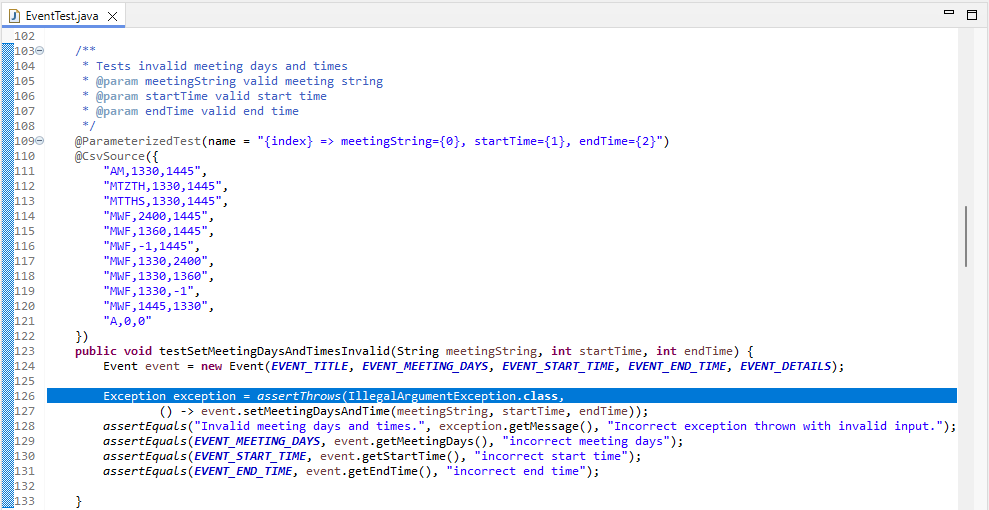

From this failure, we can see that for the input of “A” we expected an IllegalArgumentException, but the exception was not thrown. By clicking the first line labeled “at”, we can go the specific line of code that caused the test failure. Our failure is highlighted at line 126 (this may be slightly different in your local environment, which is probably ok unless you edited your tests files in a more significant way than adding blank lines…). This failure is in a method that is testing invalid meeting information. Events cannot be arranged, so the “A” meetingString is invalid. In this test, we are expecting an exception to be thrown, but it was not!

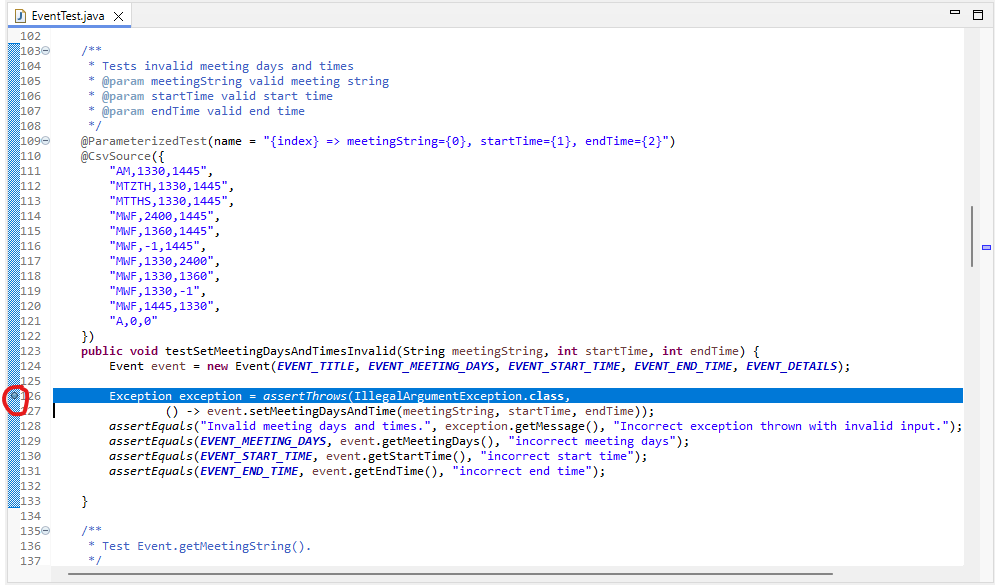

From there, we can determine the best place to put a break point. In this example, we are calling a setter as part of the test case. Since setters change object state, we should start with the setter closest to the failure; that likely lead to the failure. Put a breakpoint at the line of the failing test by double clicking in the blue bar to the left of the line numbers. This blue bar is called the “gutter”.

Run the Program through the Debugger

With debugging, you select the Debug option rather than the Run option. You can run in debug mode by right clicking on the test/ folder, a package, or a specific class, and selecting Debug As > JUnit Test. There is also a debug button on the top level tool bar. Select Debug to run the last run configuration in debug mode or select the arrow to create a new run configuration to debug.

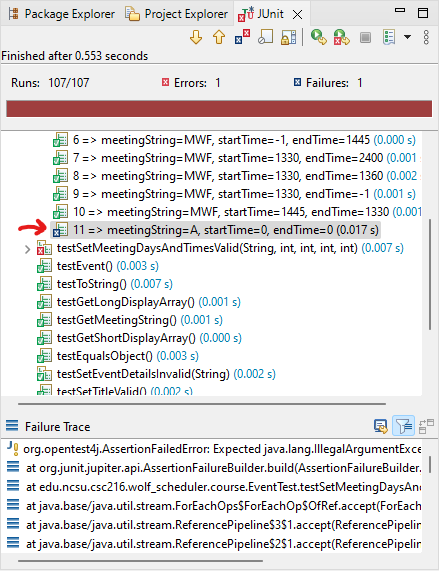

However, when debugging, I like to focus on a single failure at a time! This helps narrow my debugging session and removes having to hit a breakpoint multiple times just to get to the failure that I’m interested in debugging. That means I select the specific test failure I want to debug in the JUnit view. And for parameterized tests, you can select the specific row that you’re interested in debugging. To debug the test failure in testSetMeetingDaysAndTimesInvalid(), right click on test 11 under the testSetMeetingDaysAndTimesInvalid() label and select Debug.

You may get a message about switching perspectives - this is okay. If you check the “Remember my decision,” you will not see this dialog again.

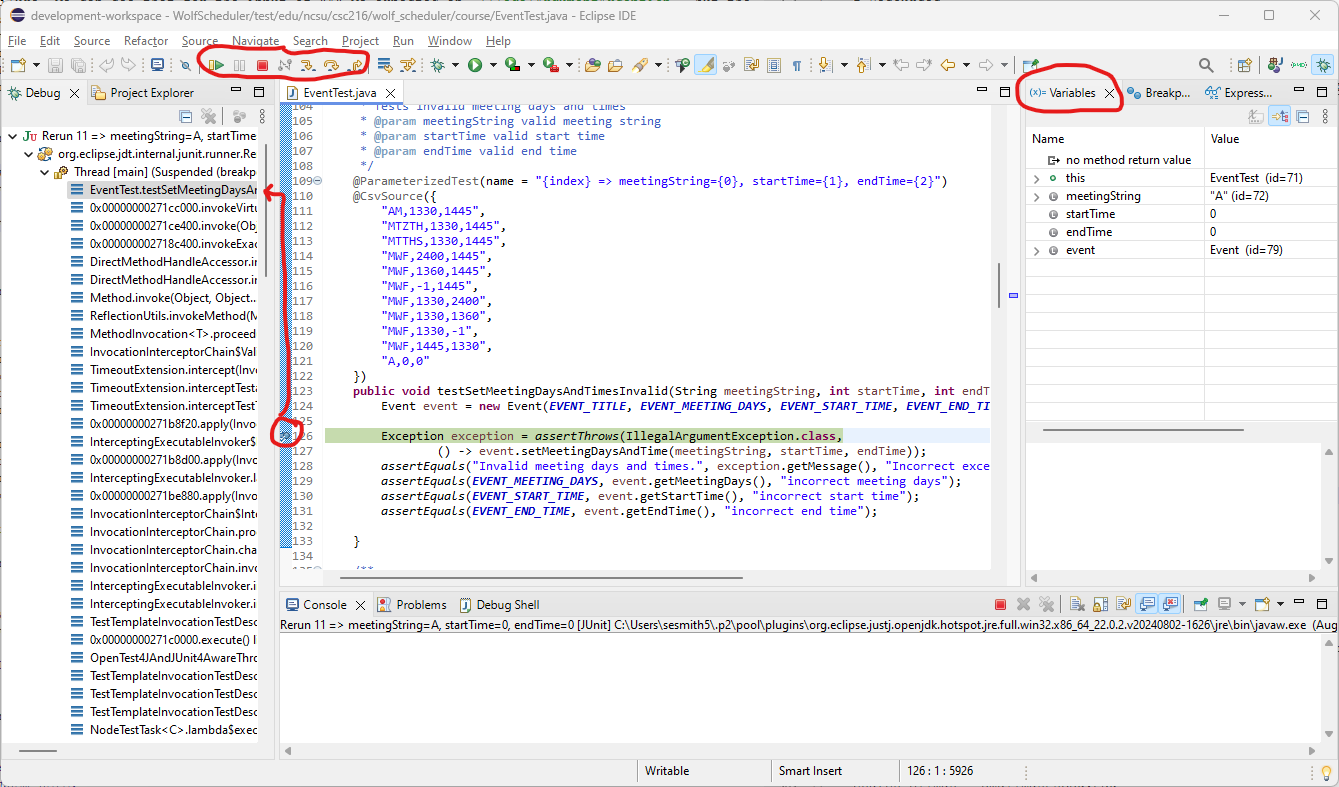

The Debug Perspective provides several views to help you with the task of debugging your code.

• Debug shows the live stack trace of methods. The figure illustrates the stack trace in execution of EventTest.testSetMeetingDaysAndTimeInvalid(). If other programs were running at the same time, you would see them here.
• Stepping Buttons are in the top tool bar. The provide the ability to restart execution, stop execution, and step through the code. We’ll cover this in more detail shortly.
• Variables shows the values of all the variables that have been declared. If your breakpoint stops before a variable’s declaration, that variable will not appear in the list.
• Breakpoints shows the locations of all your breakpoints in the code (you can have many breakpoints).
• EventTest.java shows where you are in the code at the time of the breakpoint. The arrow and highlighted text let you know where you are in the code.

Debugger Controls

The main Eclipse toolbar provides buttons for working with the debugger. There are 7 buttons in the toolbar:

• Resume: resumes the current execution from the given program point
• Suspend: pauses an execution
• Stop: stops the debugging execution. Always stop your debugging executions or you’ll use up a lot of system memory!
• Disconnect: disconnects the debugger
• Step Into: steps into a method call
• Step Over: steps over a method call without going into the details of the method
• Step Return: finishes execution of the current method and returns to the caller

Step Through a Program

You can use the debugger to determine what is happening in a program and find an underlying bug. By exploring the program, you are likely to have a better understanding of the flow of control and identify where an implementation doesn’t meet the requirements.

The line of code we’re investigating is complex. Let’s walk through it first before we start debugging:

1
2
Exception exception = assertThrows(IllegalArgumentException.class,
				() -> event.setMeetingDaysAndTime(meetingString, startTime, endTime));

This line is asserting that an IllegalArgumentException (our expected result) will be thrown when we call event.setMeetingDaysAndTime(meetingString, startTime, endTime), which is the method call that will lead to our actual result. For this specific failure, the meetingString is “A”, startTime is 0, and endTime is 0, which we can see in the Variables view. If the IllegalArgumentException is thrown, it will be assigned to the exception reference and then we can check that the correct message was provided to describe the reason for throwing the exception.

Typically at this point, we would step into the method call at the program statement. However, lambda expressions will take you through a lot of the Java API. Since we know what method we want to go to, switch to Activity.setMeetingDaysAndTime() and add a breakpoint at the first statement. Then you can click the Resume button to until you reach the first line of setMeetingDaysAndTime() bypassing all the Java API calls.

Now, we can explore the method by stepping over the program statement. Continue stepping through the method with the Step Over button. You reach the end of the method for the assignment to the meetingDays field without throwing an exception!

At this point you can either Resume or Stop the test run. You know there’s a problem in Activity.setMeetingDaysAndTime().

Debug the Program

The implementation of setMeetingDaysAndTime() in Activity is the implementation extracted from Course. There isn’t an implementation of setMeetingDaysAndTime() that supports Event specifics! You need to make a decision about how to best handle the differences between Course and Event for setMeetingDaysAndTime(). A common implementation in Activity will not work.

The solution is to have Course and Event override the setMeetingDaysAndTime() method. Course and Event will handle their own checks on meetingDays appropriate for their requirements. Then they will pass meetingDays, startTime, and endTime to Activity.setMeetingDaysAndTime() for the common time checks and assignment of the fields.

• Keep the common checks for times (e.g., valid military time) in Activity. You can optionally also keep the checks that meetingString isn’t null or empty.
• Override setMeetingDaysAndTime() in Course and ensure that [UC1] is satisfied. You will need to check that meetingString is not null or empty at the start of the overridden method. Then let Activity.setMeetingDaysAndTime() handle the common checks and final assignment.
• Override setMeetingDaysAndTime() in Event and ensure that [UC6] is satisfied. You will need to check that meetingString is not null or empty at the start of the overridden method. Note that for the meetingDays, string “U” represents Sunday and “S” represents Saturday. The other days of week characters are the same as Course. Any other character, including “A”, is invalid. Then let Activity.setMeetingDaysAndTime() handle the common checks and final assignment.

Overriding Activity.setMeetingDaysAndTime() in Event should resolve both test failures. Course tests should continue to pass.

Run Tests

Run your tests! If any are still failing, use the debugger to help you find the problem.

Switch Back to the Java Perspective

Once you’re done with debugging, you should switch back to the Java Perspective. Click the icon with a package, green circle, and purple circle with a J on it in the upper right corner to switch to the Java perspective.

Comment Event and Fix Static Analysis Notifications

Complete the following tasks:

• Update all your Javadoc for Course and Event. Overridden methods much also be commented to describe the specifics in the overridden implementation.
• Resolve all static analysis notifications.

Additional Resources on the Debugger

This was a very brief overview of using the debugger. If you would like more information, please see the Eclipse Debugger Tutorial.

Check Your Progress

Complete the following tasks before pushing your work to GitHub.

• Make sure that all fields, methods, and constructors are commented.
• Resolve all static analysis notifications.
• Fix test failures.
• Commit and push your code changes with a meaningful commit message. Label your commit with “[Debug]” for future you!
